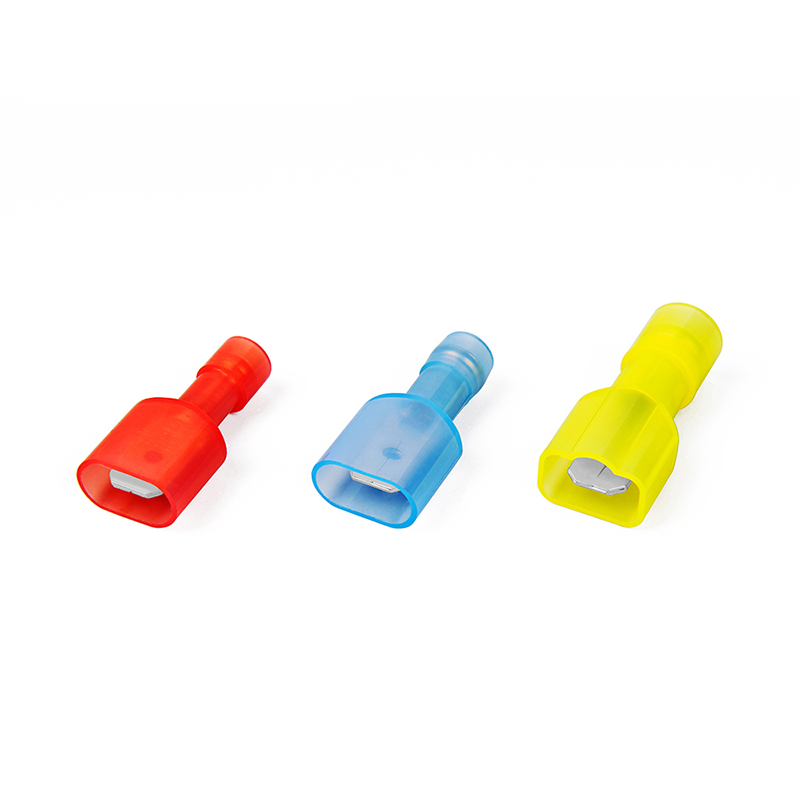

Insulated Female Disconnector | |||||||
Insulating material : Vinyl, Nylon | Material : Brass | ||||||
Cable size: 0.5-1.5mm’ | A.W.G. 22-16 | Imax =10A | Red | ||||

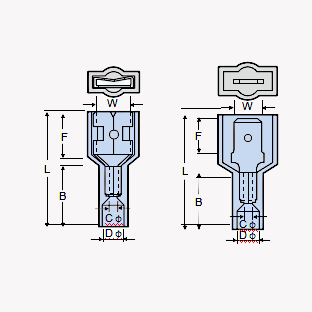

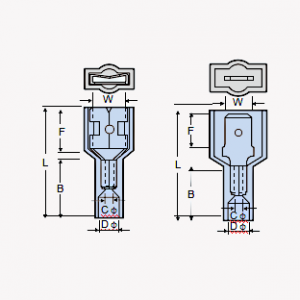

ITEM NO | Nema Tab (mm) | Thickness | Dimension (mm) | ||||
mm | B | D | d | L | F | ||
MDFN 1.25-250 | 0.8*6.35 | 0.3 | 11.0 | 4.0 | 1.7 | 23.0 | 7.7 |
MDFN 2-250 | 0.8*6.35 | 0.3 | 11.0 | 4.5 | 2.3 | 24.0 | 7.7 |
MDFN 5.5-250 | 0.8*6.35 | 0.3 | 13.0 | 6.3 | 3.4 | 25.0 | 7.7 |
