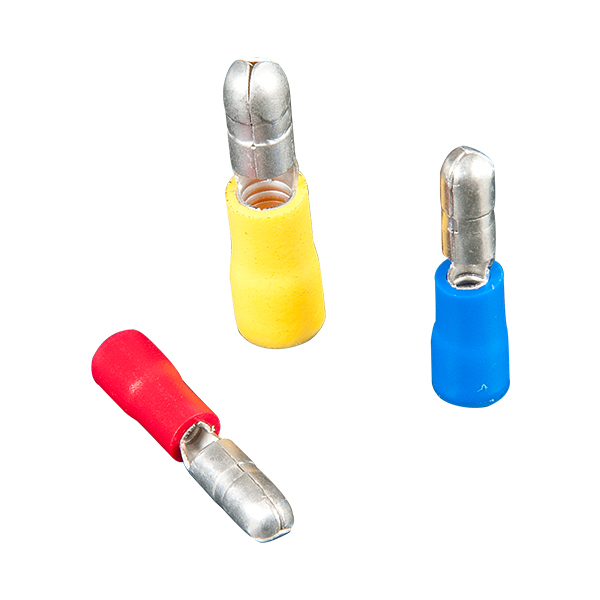

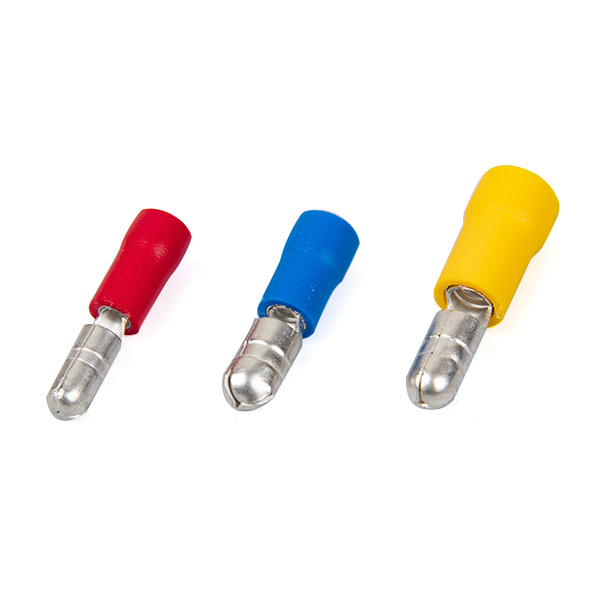

Pvc-Insulated Double Crimp Bullet Male Disconnector

●Materials: Brass

● Copper sleeve: Copper

● Insulation: PVC

●Finished: Tin-Plated

● Characteristics: Heat resistant: -10~75℃

● The copper sleeve protection terminal and the cable are fully connected and reliable

● Flared-barrel entry for easy wire insertion

Material: Brass

Insulated Bullet Disconnector
Material : Brass					Insulated : Vinyl.Nylon

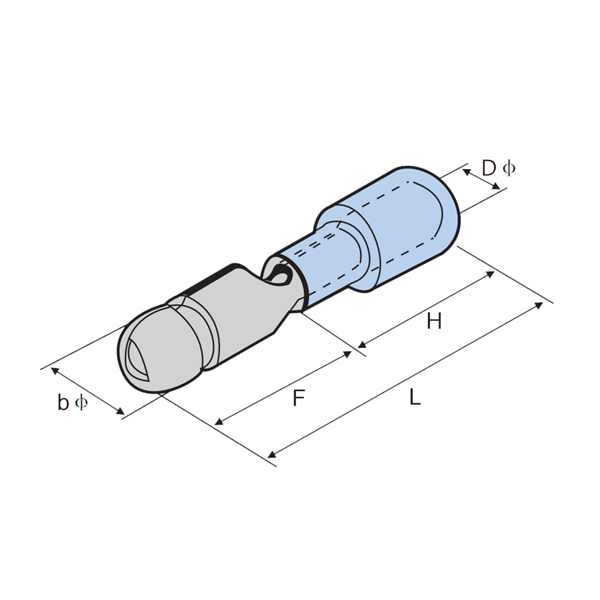

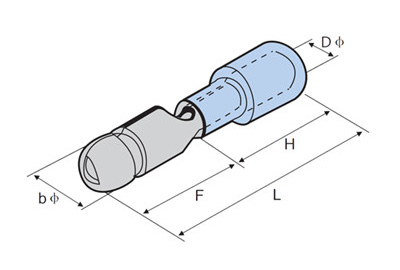

ITEM NO	Dimension (mm)					Cable Size		Imax	Thickness	Color
ITEM NO	b	F	D	L	H	mm²	A.W.G	A	mm	Color
MPD 1.25-156	4.0	11.0	1.7	21.0	10.0	0.5-1.5	22-16	10	0.4	Red
MPD 2-156	4.0	11.0	2.3	21.0	10.0	1.5-2.5	16-14	15	0.4	Blue
MPD 2-195	5.0	11.0	2.3	21.0	10.0	1.5-2.5	16-14	15	0.4	Blue
MPD 5.5-195	5.0	12.0	3.4	25.0	13.0	4-6	12-10	24	0.4	Yellow
